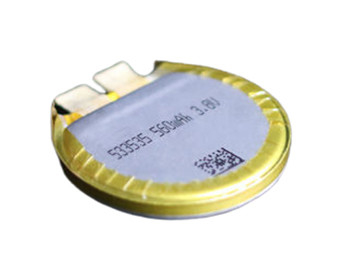

3.7V 560mAh Novel Round Lithium Ion Battery Smart Watch 533535

Certification
China AllrunBattery certification
China AllrunBattery certification
I'm Online Chat Now

3.7V 560mAh Novel Round Lithium Ion Battery Smart Watch 533535

3.7V 560mAh Novel Round Lithium Ion Battery Smart Watch 533535
3.7V 560mAh Novel Round Lithium Ion Battery Smart Watch 533535

Large Image :  3.7V 560mAh Novel Round Lithium Ion Battery Smart Watch 533535

Product Details:
Brand Name: AllrunBattery
Model Number: 533535
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Factory standard package, or on demand.
Delivery Time: 5~8 working days when cells in stocks.
Payment Terms: T/T, PayPal, Western Union.
Supply Ability: 40 million pieces LiPo battery cells per year.

3.7V 560mAh Novel Round Lithium Ion Battery Smart Watch 533535

Description
Name: Round Li-polymer Battery Cell Size: 5.5*35*38mm(T*W*L)
Voltage: 3.7V Capacity: 560mAh
Standard Discharge Current: 280mA Working Life: 80% Of Initial Capacity After 500 Cycles(0.5C Charge And Discharge)
High Light:

3.7V Round Lithium Ion Battery

,

560mAh Round Lithium Ion Battery

,

Novel Lithium Ion Battery Smart Watch

3.7V 560mAh 533535 Round LiPo Battery Novel Lithium-ion Battery for Smart Watch



Welcome to Allrun round lipo battery section, they are greatly suitable for round devices, such as Bluetooth headphones, medical equipment, smartwatches, rings, sports bracelets, electric toothbrushes, headsets, GPS, and more. In addition to utilizing the available space more effectively, a larger capacity also saves space on the inside. With Allrun customized round li-polymer batteries, all the internal space can be utilized for more energy. Shape the future with your creativity.

Key Features:

  • High Reliability
  • Powerful and Light-weight
  • Low Self-discharge
  • High Energy Density
  • Wide operating temperature: -20 ℃~60 ℃
  • With 500 charge/discharge cycles and 80% residual capacity, the battery offers high cycle stability.



Description

The round shape of a lithium polymer battery is not a general shape. To fit into lithium polymer batteries with unique shapes, we improve our tooling and process skills. High-quality and reliable round lithium polymer batteries are available in diameters of 15mm to 50mm. LiPo round batteries that we produce are safe, stable, and maintain a high level of capacity and voltage through special technologies and manufacturing expertise. Depending on your needs, we can provide ready-made round LiPo batteries or customize round LiPo batteries to meet your requirements. Providing the best battery solution for clients is a top priority for our R&D team.





Datasheet



Item 3.7V 560mAh 533535 Round LiPo Battery Novel Lithium-ion Battery for Smart Watch
Battery Type Lithium Polymer Battery
Capacity 560mAh
Normal Voltage 3.7V
Thickness 5.3mm MAX
Width 35mm MAX
Length 35mm MAX
Charge Cut-off Voltage 4.2V
Discharge Cut-off Voltage 3.0V
Standard Charge Current 280mA (0.5C)
Max Charge Current 1120mA (2C)
Standard Discharge Current 280mA (0.5C)
Max Discharge Current 560mA (1C)
Pulse Discharge Current 1120mA (2C) for 2 seconds
PCM TBD
Wire Cable and Connector TBD





Round LiPo Battery Safety Notes

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
