Product Details:
|
| Name: | Custom LiPo Battery | Nominal Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 800mAh | Size: | 9*25*37mm (T*W*L) |
| Standard Discharge Current: | 400mA | Weight: | 15g |
| High Light: | Rechargeable Light LiPo Battery,Light LiPo Battery 3.7V,LiPo Battery 800mAh |
||

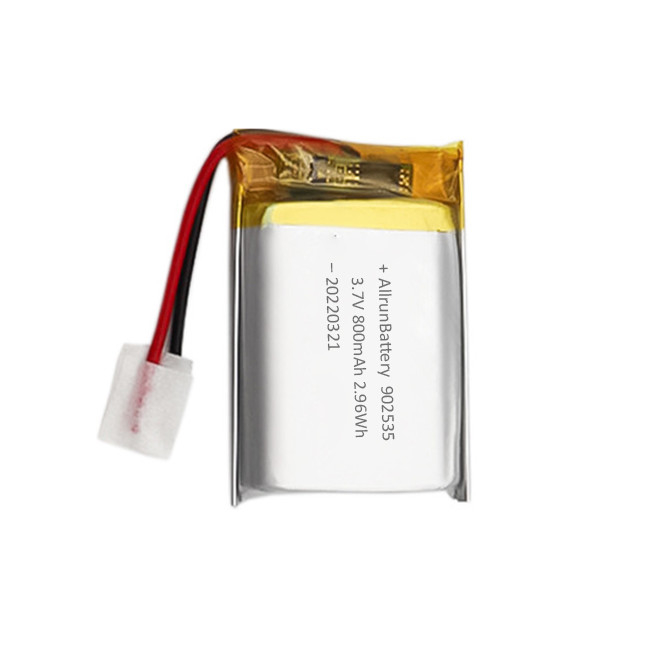

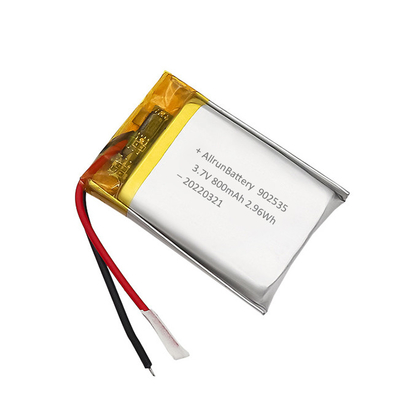

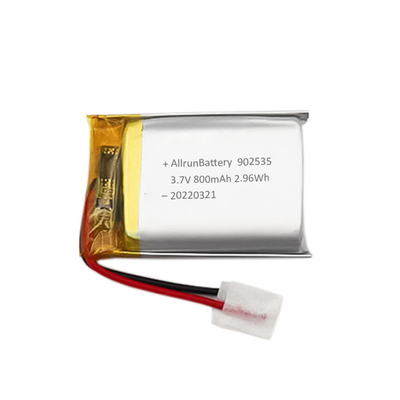

Allrun 3.7V 800mAh 902535 Rechargeable Custom LiPo Battery
Allrun custom lipo battery, or more correctly lithium-ion polymer battery (abbreviated as LiPo, LIP, Li-poly, lithium-poly, and others), is a rechargeable battery of lithium-ion technology using a polymer electrolyte instead of a liquid electrolyte. Allrun LiPo batteries are thin, light, and powerful. The normal voltage is 3.7V, 902535 LiPo battery has a capacity of 800mAh for a total of 2.96Wh. If you need a smaller or bigger LiPo battery, we also have 100mAh 4000mAh, and so on, please do not hesitate to contact us for more details.
Datasheet
| Item |
Allrun 3.7V 800mAh 902535 Rechargeable Custom LiPo Battery |
| Battery Type | Lithium Polymer Battery |
| Capacity | 800mAh |
| Normal Voltage | 3.7V |
| Thickness | 9mm MAX |
| Width | 25mm MAX |
| Length | 37mm MAX |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| Standard Charge Current | 400mA (0.5C) |
| Max Charge Current | 1600mA (2C) |
| Standard Discharge Current | 400mA (0.5C) |
| Max Discharge Current | 800mA (1C) |
| Pulse Discharge Current | 1600mA (2C) for 2 seconds |
| PCM | TBD |
| Wire Cable and Connector | TBD |
Using lithium-ion technology, custom lithium-ion polymer batteries are rechargeable and can be recharged repeatedly. It consists of one or more electrochemical cells. It is during discharge that lithium ions migrate to the positive electrode through the electrolyte, and then during charging that they migrate back to the negative electrode. Currently, this powerful technology is used in a variety of applications, such as:
-Wearable devices (smart watch, smart clothing, heating apparel, bluetooth headset, etc.)
-Medical Devices (portable X-ray camera, insulin pump, blood pressure devices, etc.)
-IoT and Smart Home products( smart lock, doorbell camera, smart faucet, security monitor, BLE credit card, etc.)
-Industrial & Consumer electronics(portable electronic devices, scanners, sensing timers, timer systems, vaccination emergency lights, etc)
Lithium polymer battery cells are tailor-made dimensions based on the customer's design, we have only listed part of the models below for your kind reference. Please contact us for more details regarding your specified project.
|
LiPo Battery Model
|
Normal Voltage (V) | Capacity (mAh) | Discharge rate | Cell Dimension (mm) | ||
|---|---|---|---|---|---|---|
| Thickness | Width | Length | ||||
|
AllrunBattery091525 |
3.7 |
15 |
1C |
0.9 |
15 |
25 |
|
AllrunBattery012323 |
3.7 |
30 |
1C |
1 |
23 |
23 |
|
AllrunBattery022817 |
3.7 |
45 |
1C |
2 |
28 |
17 |
|
AllrunBattery251416 |
3.7 |
35 |
1C |
2.5 |
14 |
16 |
|
AllrunBattery031120 |
3.7 |
40 |
1C |
3 |
11 |
20 |
|
AllrunBattery041012 |
3.7 |
30 |
1C |
4 |
10 |
12 |
|
AllrunBattery041120 |
3.7 |
55 |
1C |
4 |
11 |
20 |
|
AllrunBattery031525 |
3.7 |
80 |
1C |
3 |
15 |
25 |
|
AllrunBattery032020 |
3.7 |
85 |
1C |
3 |
20 |
20 |
|
AllrunBattery051318 |
3.7 |
55 |
1C |
5 |
13 |
18 |
|
AllrunBattery014461 |
3.7 |
180 |
1C |
1 |
44 |
61 |
|
AllrunBattery032525 |
3.7 |
140 |
1C |
3 |
25 |
25 |
|
AllrunBattery033040 |
3.7 |
320 |
1C |
3 |
30 |
40 |
|
AllrunBattery382730 |
3.7 |
280 |
1C |
3.8 |
27 |
30 |
|
AllrunBattery041042 |
3.7 |
100 |
1C |
4 |
10 |
42 |
|
AllrunBattery102525 |
3.7 |
500 |
1C |
10 |
25 |
25 |
| AllrunBattery0244125 | 3.7 | 800 | 3C | 2 | 44 | 125 |
|
AllrunBattery102540 |
3.7 |
1200 |
1C |
10 |
25 |
40 |
| AllrunBattery104040 | 3.7 | 2000 | 1C | 10 | 40 | 40 |
|
AllrunBattery104060 |
3.7 |
3000 |
1C |
10 |
40 |
60 |
|
AllrunBattery105085 |
3.7 |
5000 |
1C |
10 |
50 |
85 |
|
AllrunBattery136198 |
3.7 |
8000 |
1C |
13 |
61 |
98 |
The above data is for reference only, kindly contact us for detailed information and customized solutions for your lithium polymer battery.
Safety Notes of Custom LiPo Battery
It is not recommended to use or leave the battery in conditions of very high temperatures (for example, strong direct sunlight or a vehicle running in extremely hot conditions). As a result, it will degrade in performance and have a shorter service life due to overheating and fire.
