Product Details:
|
| Name: | Square Lithium Polymer Battery | Nominal Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 150mAh | Size: | 5*20*22mm |
| Standard Discharge Current: | 150mA | Weight: | 4g |
| High Light: | Rechargeable Square LiPo Battery,Square LiPo Battery,3.7 V 150mAh LiPo Battery |
||

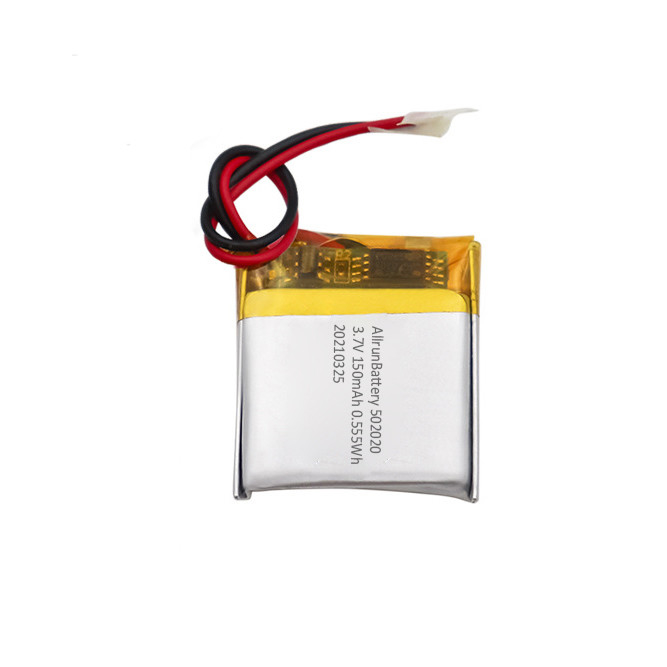

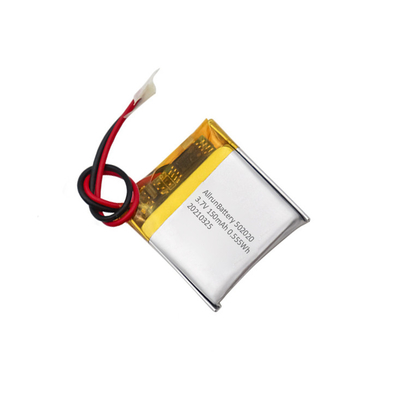

Allrun 3.7V 150mAh 502020 Rechargeable Square Li-Po Battery Pack
Welcome to Allrun square shape lipo battery section, they are rechargeable lithium polymer batteries made from polymer electrolytes instead of liquid electrolytes (abbreviated LiPo, LIP, Li-poly, lithium-poly, and others). Allrun square li-polymer batteries are tailor-made dimensions based on the customer's design, various sizes and capacities are available, please contact us for more details regarding your specified project.
Datasheet
| Item |
Allrun 3.7V 150mAh 502020 Rechargeable Square Li-Po Battery Pack |
| Battery Type | Lithium Polymer Battery |
| Capacity | 150mAh |
| Normal Voltage | 3.7V |
| Thickness | 5mm MAX |
| Width | 20mm MAX |
| Length | 22mm MAX |
| Charge Cut-off Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| Standard Charge Current | 75mA (0.5C) |
| Max Charge Current | 300mA (2C) |
| Standard Discharge Current | 75mA (0.5C) |
| Max Discharge Current | 150mA (1C) |
| Pulse Discharge Current | 300mA (2C) for 2 seconds |
| PCM | YES |
| Wire Cable | 80MM |
Allrun square lithium-ion polymer batteries are using lithium-ion technology that can be recharged repeatedly. It is constructed from one to several electrochemical cells. Lithium ions migrate during discharge from the negative electrode through the electrolyte to the positive electrode, and then back again during the charging. Today this powerful technology is used in a number of applications, such as
-Wearable devices (smart watch, smart clothing, heating apparel, bluetooth headset, etc.)
-Medical Devices (portable X-ray camera, insulin pump, blood pressure devices, etc.)
-IoT and Smart Home products( smart lock, doorbell camera, smart faucet, security monitor, BLE credit card, etc.)
-Industrial &Consumer electronics(portable electronic devices, scanners, sensing timers, timer systems, vaccination emergency lights, etc)
