3C Discharge 3.7 V 800mAh LiPo Battery Ultra Thin LiPo Polymer Battery

Certification
China AllrunBattery certification
China AllrunBattery certification
I'm Online Chat Now

3C Discharge 3.7 V 800mAh LiPo Battery Ultra Thin LiPo Polymer Battery

3C Discharge 3.7 V 800mAh LiPo Battery Ultra Thin LiPo Polymer Battery
3C Discharge 3.7 V 800mAh LiPo Battery Ultra Thin LiPo Polymer Battery

Large Image :  3C Discharge 3.7 V 800mAh LiPo Battery Ultra Thin LiPo Polymer Battery

Product Details:
Brand Name: AllrunBattery
Model Number: 0244125
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Factory standard package, or on demand.
Delivery Time: 5~8 working days when cells in stocks.
Payment Terms: T/T, PayPal, Western Union.
Supply Ability: 40 million pieces LiPo battery cells per year.

3C Discharge 3.7 V 800mAh LiPo Battery Ultra Thin LiPo Polymer Battery

Description
Name: Ultra Thin LiPo Battery Cell Size: 2*44*125mm(T*W*L)
Voltage: 3.7V Capacity: 800mAh
Standard Discharge Current: 400mA Continuous Discharge Rate: 3C
High Light:

3C 3.7 V 800mAh LiPo Battery

,

3.7 V 800mAh LiPo Battery

,

Ultra Thin LiPo Polymer Battery

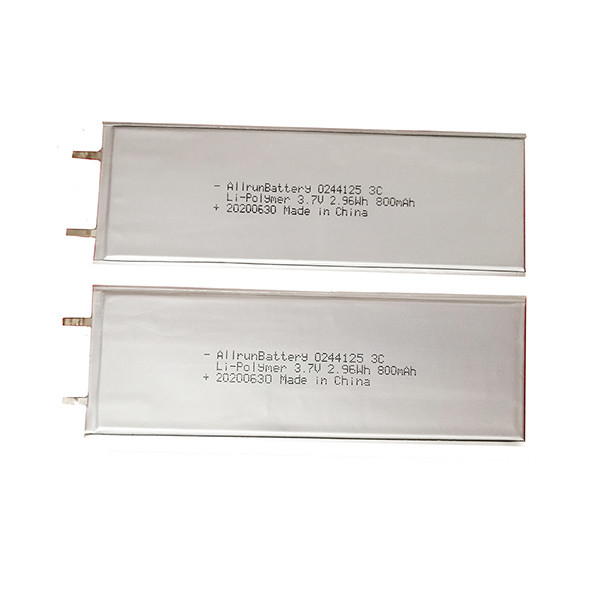

3.7V 800mAh 0244125 3C Discharge Ultra Thin Li-Polymer Battery Cell



Welcome to Allrun ultra-thin lipo battery section, they are greatly suitable for a variety of applications, such as MP3 players, RFID electronic tags, smart cards, second-generation bank cards, Smart knee pads, etc. With Allrun customized slim li-polymer batteries, all the internal space can be utilized for more energy.



Description

Allrun special-shaped batteries are available in a range of thicknesses from 0.35mm to 7mm. This ultra-thin battery provides long cycle life with low self-consumption and can always be as thin as paper.

Here are the services we offer:

  1. Customized and flexible power solutions according to your requirements

  2. An efficient and reliable performance

  3. Support OEM and ODM

  4. Different sizes and models can be designed and manufactured



Datasheet



Item 3.7V 800mAh 0244125 3C Discharge Ultra Thin Li-Polymer Battery
Battery Type Rechargeable Lithium Polymer Battery
Capacity 800mAh
Normal Voltage 3.7V
Thickness 2.0mm MAX
Width 44.0mm MAX
Length 125.0mm MAX
Charge Cut-off Voltage 4.2V
Discharge Cut-off Voltage 3.0V
Standard Charge Current 400mA (0.5C)
Max Charge Current 1600mA (2C)
Standard Discharge Current 400mA (0.5C)
Max Discharge Current 2400mA (3C)
Pulse Discharge Current 4800mA (6C) for 2 seconds
PCM TBD
Wire Cable and Connector TBD







 Safety Notes of Ultra-thin LiPo Battery

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
