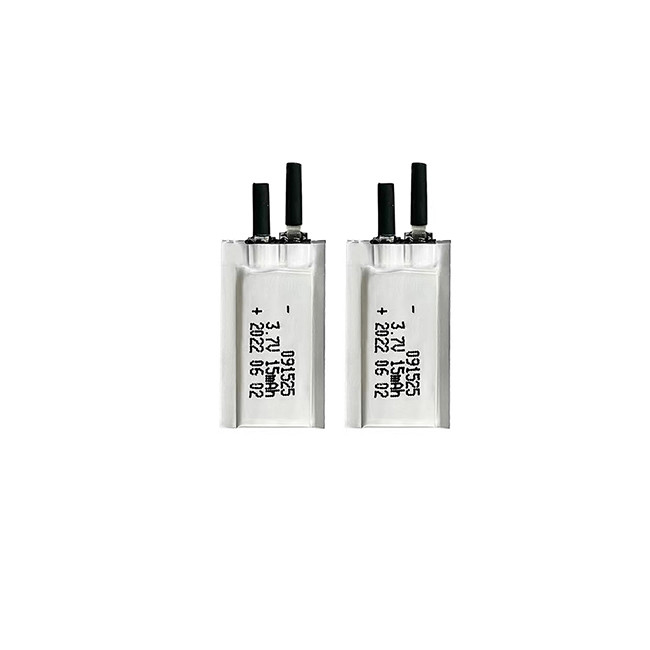

3.7V 15mAh Custom Rechargeable Ultra Thin LiPo Battery 091525

Certification
China AllrunBattery certification
China AllrunBattery certification
I'm Online Chat Now

3.7V 15mAh Custom Rechargeable Ultra Thin LiPo Battery 091525

3.7V 15mAh Custom Rechargeable Ultra Thin LiPo Battery 091525
3.7V 15mAh Custom Rechargeable Ultra Thin LiPo Battery 091525

Large Image :  3.7V 15mAh Custom Rechargeable Ultra Thin LiPo Battery 091525

Product Details:
Brand Name: AllrunBattery
Model Number: 091525
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Factory standard package, or on demand.
Delivery Time: 5~8 working days when cells in stocks.
Payment Terms: T/T, PayPal, Western Union.
Supply Ability: 40 million pieces LiPo battery cells per year.

3.7V 15mAh Custom Rechargeable Ultra Thin LiPo Battery 091525

Description
Name: Ultra Thin LiPo Battery Cell Size: 0.9*15*25mm(T*W*L)
Voltage: 3.7V Capacity: 15mAh
Standard Discharge Current: 7.5mA Continuous Discharge Rate: 1C
Highlight:

Custom Ultra Thin LiPo Battery

,

Rechargeable Ultra Thin LiPo Battery

,

15mAh Rechargeable LiPo Battery

3.7V 15mAh 091525 Custom Rechargeable Ultra Thin LiPo Battery



Welcome to Allrun ultra-thin lipo battery section, they are greatly suitable for a variety of applications, such as MP3 players, RFID electronic tags, smart cards, second-generation bank cards, Smart knee pads, etc. With Allrun customized slim li-polymer batteries, all the internal space can be utilized for more energy.



Description

Allrun special-shaped batteries are available in a range of thicknesses from 0.35mm to 7mm. This ultra-thin battery provides long cycle life with low self-consumption and can always be as thin as paper.

Here are the services we offer:

  1. Customized and flexible power solutions according to your requirements

  2. An efficient and reliable performance

  3. Support OEM and ODM

  4. Different sizes and models can be designed and manufactured



Datasheet



Item

3.7V 15mAh 091525 Custom Rechargeable Ultra Thin LiPo Battery

Battery Type Rechargeable Lithium Polymer Battery
Capacity 30mAh
Normal Voltage 3.7V
Thickness 0.9mm MAX
Width 15.0mm MAX
Length 25.0mm MAX
Charge Cut-off Voltage 4.2V
Discharge Cut-off Voltage 3.0V
Standard Charge Current 7.5mA (0.5C)
Max Charge Current 30mA (2C)
Standard Discharge Current 7.5mA (0.5C)
Max Discharge Current 15mA (1C)
Pulse Discharge Current 30mA (2C) for 2 seconds
PCM TBD
Wire Cable and Connector TBD







 Safety Notes of Ultra-thin LiPo Battery

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
