Smart Cards Ultra Thin LiPo Battery 110mAh 3.7V Long Cycle Life Battery

Certification
China AllrunBattery certification
China AllrunBattery certification
I'm Online Chat Now

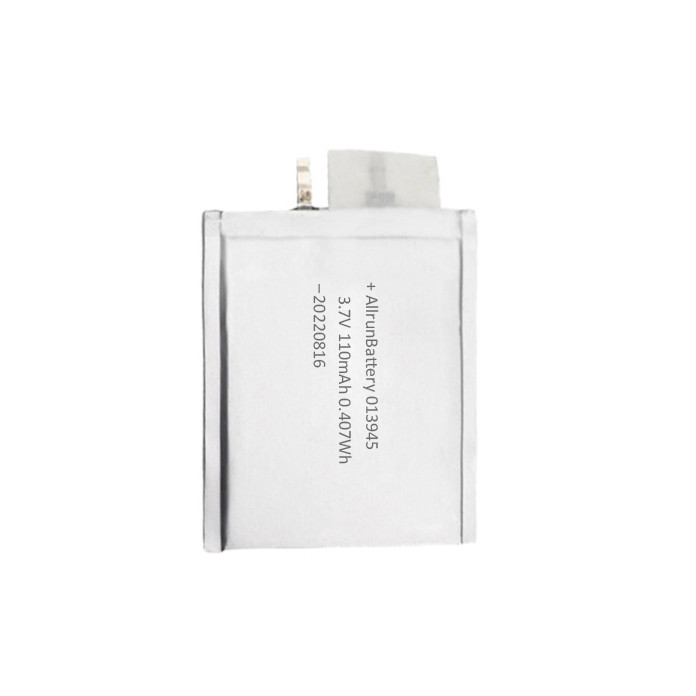

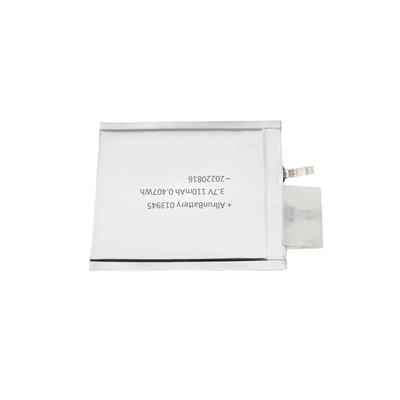

Smart Cards Ultra Thin LiPo Battery 110mAh 3.7V Long Cycle Life Battery

Smart Cards Ultra Thin LiPo Battery 110mAh 3.7V Long Cycle Life Battery
Smart Cards Ultra Thin LiPo Battery 110mAh 3.7V Long Cycle Life Battery Smart Cards Ultra Thin LiPo Battery 110mAh 3.7V Long Cycle Life Battery

Large Image :  Smart Cards Ultra Thin LiPo Battery 110mAh 3.7V Long Cycle Life Battery

Product Details:
Brand Name: AllrunBattery
Model Number: 013945
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Factory standard package, or on demand.
Delivery Time: 5~8 working days when cells in stocks.
Payment Terms: T/T, PayPal, Western Union.
Supply Ability: 40 million pieces LiPo battery cells per year.

Smart Cards Ultra Thin LiPo Battery 110mAh 3.7V Long Cycle Life Battery

Description
Name: Ultra Thin LiPo Battery Cell Size: 1*39*45mm(T*W*L)
Voltage: 3.7V Capacity: 110mAh
Standard Discharge Current: 55mA (0.5C) Weight: 2.5g
High Light:

Smart Cards Ultra Thin LiPo Battery

,

Ultra Thin LiPo Battery 110mAh

,

3.7V Long Cycle Life Battery

3.7V 110mAh 013945 Ultra Thin LiPo Battery For Smart Cards



Welcome to Allrun ultra-thin lipo battery section, they are greatly suitable for a variety of applications, such as MP3 players, RFID electronic tags, smart cards, second-generation bank cards, Smart knee pads, etc. With Allrun customized slim li-polymer batteries, all the internal space can be utilized for more energy.



Description

Allrun special-shaped batteries are available in a range of thicknesses from 0.35mm to 7mm. This ultra-thin battery provides long cycle life with low self-consumption and can always be as thin as paper.

Here are the services we offer:

  1. Customized and flexible power solutions according to your requirements

  2. An efficient and reliable performance

  3. Support OEM and ODM

  4. Different sizes and models can be designed and manufactured



Datasheet



Item 3.7V 110mAh 013945 Ultra Thin LiPo Battery For Smart Cards
Battery Type Rechargeable Lithium Polymer Battery
Capacity 110mAh
Normal Voltage 3.7V
Thickness 1.0mm MAX
Width 39.0mm MAX
Length 45.0mm MAX
Charge Cut-off Voltage 4.2V
Discharge Cut-off Voltage 3.0V
Standard Charge Current 55mA (0.5C)
Max Charge Current 220mA (2C)
Standard Discharge Current 55mA (0.5C)
Max Discharge Current 110mA (1C)
Pulse Discharge Current 360mA (2C) for 2 seconds
PCM TBD
Wire Cable and Connector TBD







 Safety Notes of Ultra-thin LiPo Battery

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
