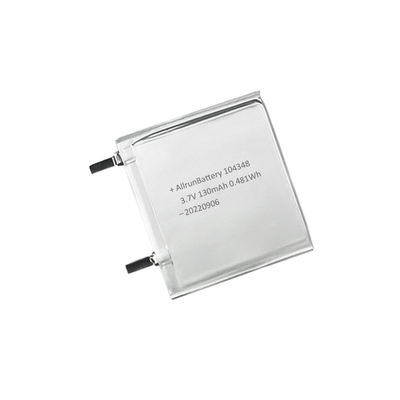

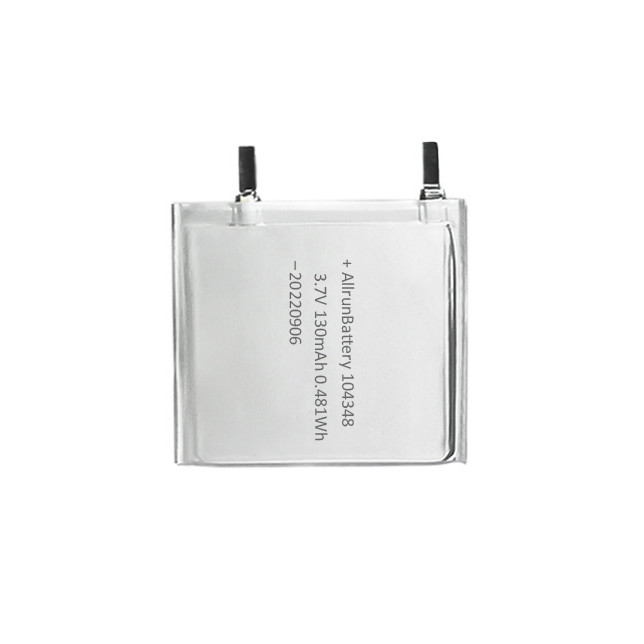

MP5 Player 3.7 V 130mAh Ultra Thin LiPo Battery Long Cycle 104348

Certification
China AllrunBattery certification
China AllrunBattery certification
I'm Online Chat Now

MP5 Player 3.7 V 130mAh Ultra Thin LiPo Battery Long Cycle 104348

MP5 Player 3.7 V 130mAh Ultra Thin LiPo Battery Long Cycle 104348
MP5 Player 3.7 V 130mAh Ultra Thin LiPo Battery Long Cycle 104348 MP5 Player 3.7 V 130mAh Ultra Thin LiPo Battery Long Cycle 104348

Large Image :  MP5 Player 3.7 V 130mAh Ultra Thin LiPo Battery Long Cycle 104348

Product Details:
Brand Name: AllrunBattery
Model Number: 104348
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Factory standard package, or on demand.
Delivery Time: 5~8 working days when cells in stocks.
Payment Terms: T/T, PayPal, Western Union.
Supply Ability: 40 million pieces LiPo battery cells per year.

MP5 Player 3.7 V 130mAh Ultra Thin LiPo Battery Long Cycle 104348

Description
Name: Ultra Thin LiPo Battery Cell Size: 1*43*48mm(T*W*L)
Voltage: 3.7V Capacity: 130mAh
Standard Discharge Current: 65mA (0.5C) Weight: 2.1g
High Light:

MP5 Player Ultra Thin LiPo Battery

,

Ultra Thin LiPo Battery Long Cycle

,

3.7 V 130mAh LiPo Battery

3.7V 130mAh 104348 Ultra Thin LiPo Battery For MP5 Player



Welcome to Allrun ultra-thin lipo battery section, they are greatly suitable for a variety of applications, such as MP3 players, RFID electronic tags, smart cards, second-generation bank cards, Smart knee pads, etc. With Allrun customized slim li-polymer batteries, all the internal space can be utilized for more energy.



Description

Allrun special-shaped batteries are available in a range of thicknesses from 0.35mm to 7mm. This ultra-thin battery provides long cycle life with low self-consumption and can always be as thin as paper.

Here are the services we offer:

  1. Customized and flexible power solutions according to your requirements

  2. An efficient and reliable performance

  3. Support OEM and ODM

  4. Different sizes and models can be designed and manufactured



Datasheet



Item

3.7V 130mAh 104348 Ultra Thin LiPo Battery For MP5 Player

Battery Type Rechargeable Lithium Polymer Battery
Capacity 130mAh
Normal Voltage 3.7V
Thickness 1.0mm MAX
Width 43.0mm MAX
Length 48.0mm MAX
Charge Cut-off Voltage 4.2V
Discharge Cut-off Voltage 3.0V
Standard Charge Current 65mA (0.5C)
Max Charge Current 260mA (2C)
Standard Discharge Current 65mA (0.5C)
Max Discharge Current 130mA (1C)
Pulse Discharge Current 260mA (2C) for 2 seconds
PCM TBD
Wire Cable and Connector TBD







 Safety Notes of Ultra-thin LiPo Battery

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
