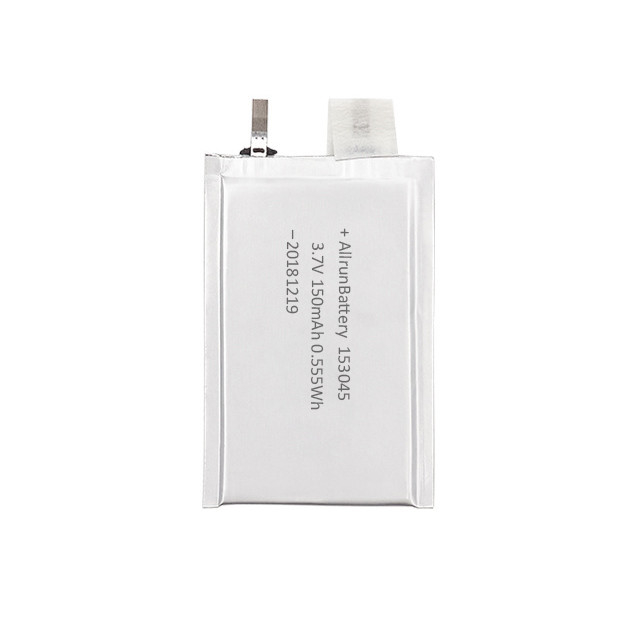

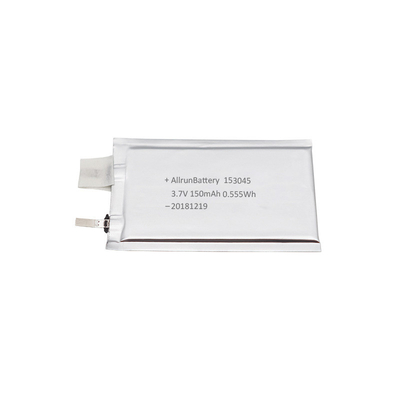

Ultra Slim LiPo Battery 3.7V 150mAh Rechargeable Lithium Polymer Battery

Certification
China AllrunBattery certification
China AllrunBattery certification
I'm Online Chat Now

Ultra Slim LiPo Battery 3.7V 150mAh Rechargeable Lithium Polymer Battery

Ultra Slim LiPo Battery 3.7V 150mAh Rechargeable Lithium Polymer Battery
Ultra Slim LiPo Battery 3.7V 150mAh Rechargeable Lithium Polymer Battery Ultra Slim LiPo Battery 3.7V 150mAh Rechargeable Lithium Polymer Battery

Large Image :  Ultra Slim LiPo Battery 3.7V 150mAh Rechargeable Lithium Polymer Battery

Product Details:
Brand Name: AllrunBattery
Model Number: 153045
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Factory standard package, or on demand.
Delivery Time: 5~8 working days when cells in stocks.
Payment Terms: T/T, PayPal, Western Union.
Supply Ability: 40 million pieces LiPo battery cells per year.

Ultra Slim LiPo Battery 3.7V 150mAh Rechargeable Lithium Polymer Battery

Description
Name: Ultra Thin LiPo Battery Cell Size: 1.5*30*45mm(T*W*L)
Voltage: 3.7V Capacity: 150mAh
Standard Discharge Current: 75mA (0.5C) Warranty: 1 Year After The Date Of Shipment
High Light:

Ultra Slim LiPo Battery

,

Slim LiPo Battery

,

150mAh Rechargeable Lithium Polymer Battery

3.7V 150mAh 153045 Ultra Slim Rechargeable Lithium Polymer Battery



Welcome to Allrun ultra-thin lipo battery section, they are greatly suitable for a variety of applications, such as MP3 players, RFID electronic tags, smart cards, second-generation bank cards, Smart knee pads, etc. With Allrun customized slim li-polymer batteries, all the internal space can be utilized for more energy.



Description

Allrun special-shaped batteries are available in a range of thicknesses from 0.35mm to 7mm. This ultra-thin battery provides long cycle life with low self-consumption and can always be as thin as paper.

Here are the services we offer:

  1. Customized and flexible power solutions according to your requirements

  2. An efficient and reliable performance

  3. Support OEM and ODM

  4. Different sizes and models can be designed and manufactured



Datasheet



Item

3.7V 150mAh 153045 Ultra Slim Rechargeable Lithium Polymer Battery

Battery Type Lithium Polymer Battery
Capacity 150mAh
Normal Voltage 3.7V
Thickness 1.5mm MAX
Width 30.0mm MAX
Length 45.0mm MAX
Charge Cut-off Voltage 4.2V
Discharge Cut-off Voltage 3.0V
Standard Charge Current 75mA (0.5C)
Max Charge Current 300mA (2C)
Standard Discharge Current 75mA (0.5C)
Max Discharge Current 150mA (1C)
Pulse Discharge Current 300mA (2C) for 2 seconds
PCM TBD
Wire Cable and Connector TBD







 Safety Notes of Ultra-thin LiPo Battery

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
