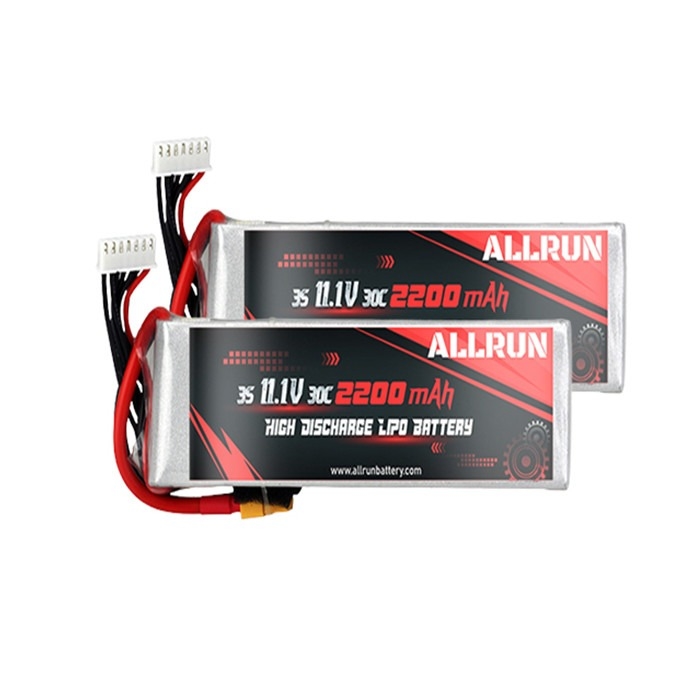

3S1P 30C High Discharge LiPo Battery 11.1V 2200mAh For RC Aircraft

Certification
China AllrunBattery certification
China AllrunBattery certification
I'm Online Chat Now

3S1P 30C High Discharge LiPo Battery 11.1V 2200mAh For RC Aircraft

3S1P 30C High Discharge LiPo Battery 11.1V 2200mAh For RC Aircraft
3S1P 30C High Discharge LiPo Battery 11.1V 2200mAh For RC Aircraft

Large Image :  3S1P 30C High Discharge LiPo Battery 11.1V 2200mAh For RC Aircraft

Product Details:
Brand Name: AllrunBattery
Model Number: 753496
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: Factory standard package, or on demand.
Delivery Time: 5~8 working days when cells in stocks.
Payment Terms: T/T, PayPal, Western Union.
Supply Ability: 40 million pieces LiPo battery cells per year.

3S1P 30C High Discharge LiPo Battery 11.1V 2200mAh For RC Aircraft

Description
Battery Type: Li-polymer Battery Cell Voltage: 11.1V
Capacity: 2200mAh Pack Size: 25*28*110mm(T*W*L)
Continuous Discharge C-rate: 30C Max Continuouswork Current: 66A
High Light:

30C High Discharge LiPo Battery

,

3S1P High Discharge LiPo Battery

,

LiPo Battery 11.1V 2200mAh

11.1V 2200mAh 30C 3S1P High C-rate LiPo Battery for RC Aircraft



Welcome to Allrun high discharge(C-rate) lipo battery section, they are widely used in various fields, such as model aircraft ( RC ), medical equipment, drones for aerial and agricultural plant protection purposes, emergency power supplies, power tools, and so on.



The high rate discharge lithium polymer battery represents the charge and discharge capacity of lithium polymer batteries relative to the standard rate discharge lithium polymer battery. A lithium-polymer battery is normally measured using a "C" value to represent its charge and discharge current ratio. Batteries with a C-rate number higher than 1 are considered high-rate batteries. The larger the C-rate number of a li-polymer battery, the higher the rate of the li-polymer battery.





Datasheet



Item 11.1V 2200mAh 30C 3S1P High C-rate LiPo Battery for RC Aircraft
Battery Type Lithium Polymer Battery
Capacity 2200mAh
Normal Voltage 11.1V
Thickness 25mm MAX
Width 28mm MAX
Length 110mm MAX
Charge Cut-off Voltage 12.6V
Discharge Cut-off Voltage 9.0V
Standard Charge Current 1100mA (0.5C)
Max Charge Current 2200mA (1C)
Max Continuous Discharge Current 66A (30C)
Pulse Discharge Current 132A ( for 2 seconds )
Connector TBD





 Safety Notes of High C-rate LiPo Battery

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
