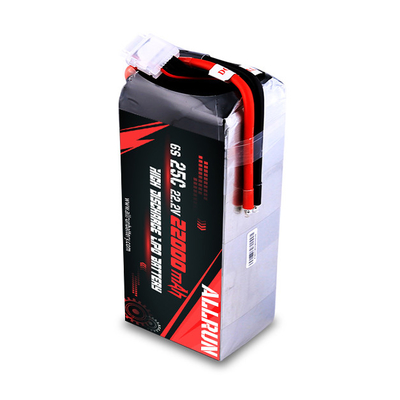

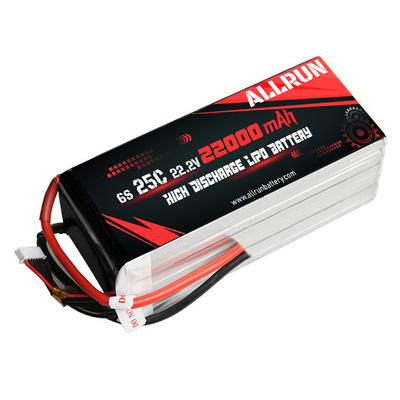

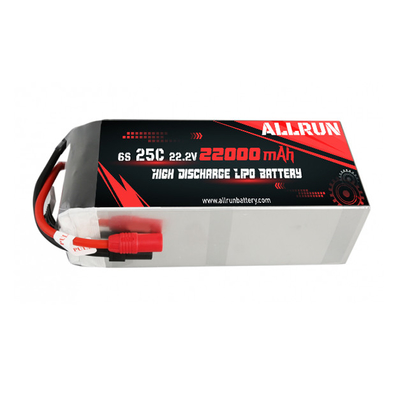

25C 6S 22000mAh LiPo Battery 22.2V High C Rate LiPo Battery Pack

Certification
China AllrunBattery certification
China AllrunBattery certification
I'm Online Chat Now

25C 6S 22000mAh LiPo Battery 22.2V High C Rate LiPo Battery Pack

25C 6S 22000mAh LiPo Battery 22.2V High C Rate LiPo Battery Pack
25C 6S 22000mAh LiPo Battery 22.2V High C Rate LiPo Battery Pack 25C 6S 22000mAh LiPo Battery 22.2V High C Rate LiPo Battery Pack 25C 6S 22000mAh LiPo Battery 22.2V High C Rate LiPo Battery Pack

Large Image :  25C 6S 22000mAh LiPo Battery 22.2V High C Rate LiPo Battery Pack

Product Details:
Brand Name: AllrunBattery
Model Number: 1190200
Payment & Shipping Terms:
Minimum Order Quantity: MOQ: 100PCS
Price: Negotiable
Packaging Details: Factory standard package, or on demand.
Delivery Time: 5~8 working days when cells in stocks.
Payment Terms: T/T, PayPal, Western Union.
Supply Ability: 40 million pieces LiPo battery cells per year.

25C 6S 22000mAh LiPo Battery 22.2V High C Rate LiPo Battery Pack

Description
Battery Type: High Discharge LiPo Battery Voltage: 22.2V
Capacity: 22000mAh Pack Size: 70*90*202mm(T*W*L)
Continuous Discharge C-rate: 25C Max Continuouswork Current: 550A
High Light:

25C 6S 22000mAh LiPo Battery

,

6S 22000mAh LiPo Battery

,

LiPo Battery 22.2V

Allrun 25C 22000mAh 6S 22.2V High C-rate LiPo Battery Pack



Welcome to Allrun high discharge(C-rate) lipo battery section, they are widely used in various fields, such as model aircraft ( RC ), medical equipment, drones for aerial and agricultural plant protection purposes, emergency power supplies, power tools, and so on.



The high rate discharge lithium polymer battery represents the charge and discharge capacity of lithium polymer batteries relative to the standard rate discharge lithium polymer battery. A lithium-polymer battery is normally measured using a "C" value to represent its charge and discharge current ratio. Batteries with a C-rate number higher than 1 are considered high-rate batteries. The larger the C-rate number of a li-polymer battery, the higher the rate of the li-polymer battery.





Datasheet



Item

Allrun 25C 22000mAh 6S 22.2V High C-rate LiPo Battery Pack

Battery Type Rechargeable LiPo Battery
Capacity 22000mAh
Normal Voltage 22.2V
Thickness 70mm MAX
Width 90mm MAX
Length 202mm MAX
Charge Cut-off Voltage 25.2V
Discharge Cut-off Voltage 18.0V
Standard Charge Current 11000mA (0.5C)
Max Charge Current 22000mA (1C)
Max Continuous Discharge Current 550A (25C)
Pulse Discharge Current 1100A (for 2 seconds)
Connector TBD





 Safety Notes of High C-rate LiPo Battery

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
