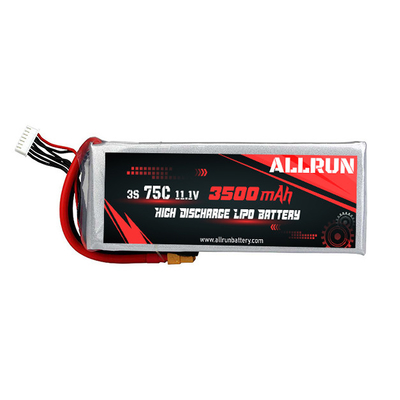

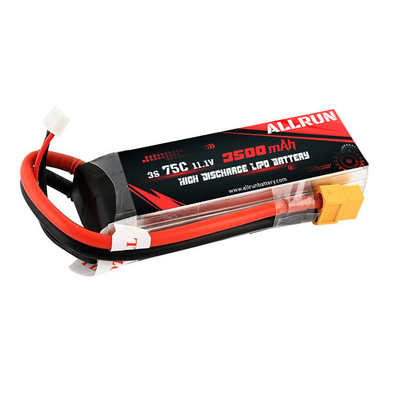

3S 3500mAh 11.1 V High Discharge LiPo Battery Pack 75C Li Polymer Battery

Certification
China AllrunBattery certification
China AllrunBattery certification
I'm Online Chat Now

3S 3500mAh 11.1 V High Discharge LiPo Battery Pack 75C Li Polymer Battery

3S 3500mAh 11.1 V High Discharge LiPo Battery Pack 75C Li Polymer Battery
3S 3500mAh 11.1 V High Discharge LiPo Battery Pack 75C Li Polymer Battery 3S 3500mAh 11.1 V High Discharge LiPo Battery Pack 75C Li Polymer Battery

Large Image :  3S 3500mAh 11.1 V High Discharge LiPo Battery Pack 75C Li Polymer Battery

Product Details:
Brand Name: AllrunBattery
Model Number: 7043134
Payment & Shipping Terms:
Minimum Order Quantity: MOQ: 100PCS
Price: Negotiable
Packaging Details: Factory standard package, or on demand.
Delivery Time: 5~8 working days when cells in stocks.
Payment Terms: T/T, PayPal, Western Union.
Supply Ability: 40 million pieces LiPo battery cells per year.

3S 3500mAh 11.1 V High Discharge LiPo Battery Pack 75C Li Polymer Battery

Description
Battery Type: High Discharge LiPo Battery Voltage: 11.1V
Capacity: 3500mAh Pack Size: 21*43*136mm(T*W*L)
Continuous Discharge C-rate: 75C Max Continuouswork Current: 262.5A
High Light:

3S High Discharge LiPo Battery

,

3500mAh High Discharge LiPo Battery

,

11.1 V LiPo Battery Pack

Allrun 75C 3500mAh 3S 11.1V High C-rate Li-polymer Battery Pack



Welcome to Allrun high discharge(C-rate) lipo battery section, they are widely used in various fields, such as model aircraft ( RC ), medical equipment, drones for aerial and agricultural plant protection purposes, emergency power supplies, power tools, and so on.



The high rate discharge lithium polymer battery represents the charge and discharge capacity of lithium polymer batteries relative to the standard rate discharge lithium polymer battery. A lithium-polymer battery is normally measured using a "C" value to represent its charge and discharge current ratio. Batteries with a C-rate number higher than 1 are considered high-rate batteries. The larger the C-rate number of a li-polymer battery, the higher the rate of the li-polymer battery.





Datasheet



Item Allrun 75C 3500mAh 3S 11.1V High C-rate Li-polymer Battery Pack
Battery Type Rechargeable LiPo Battery
Capacity 3500mAh
Normal Voltage 11.1V
Thickness 21mm MAX
Width 43mm MAX
Length 136mm MAX
Charge Cut-off Voltage 12.6V
Discharge Cut-off Voltage 9.0V
Standard Charge Current 1750mA (0.5C)
Max Charge Current 3500mA (1C)
Max Continuous Discharge Current 262.5A (75C)
Pulse Discharge Current 525A (for 2 seconds)
Connector TBD





 Safety Notes of High C-rate LiPo Battery

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
